Product Summary

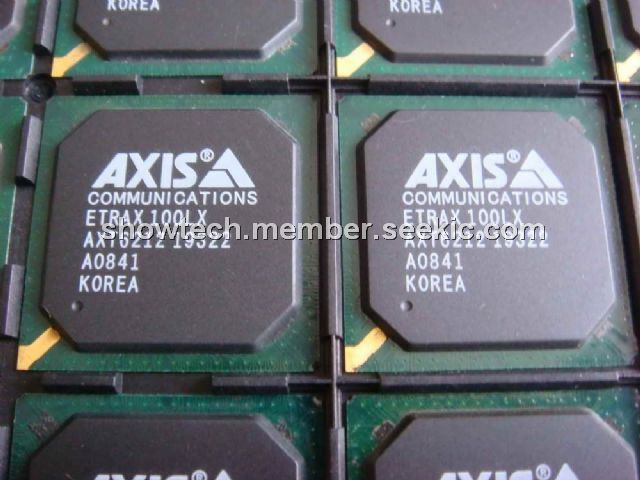

The ETRAX100LX is a Network Device System-on-Chip. The ETRAX100LX with a powerful CPU, MMU (Memory Management Unit), integrated Ethernet (10/100), and many device interfaces, is a price competitive hardware option for designers of embedded Linux appliances such as internet gateways, access control equipment, industry automation controllers, BluetoothTM appliances etc. The ETRAX100LX is combined with the latest available Linux kernel, and the strong support and design help provided by Axis’ engineers, product development teams are able to quickly get to market with competitive products by using the AXIS ETRAX100LX.
Parametrics
ETRAX100LX general specifications: (1)16MB SDRAM; (2)16-bit interface; (3)More RAM can be added externally to enable a 32-bit interface; (4)4MB Integrated Flash; (5)More FLASH can be added externally; (6)10/100 Mbit Ethernet PHY; (7)Supports full duplex mode; (8)Autosensing speed and duplex mode; (9)50 passive components (resistors and capacitors); (10)Reset circuitry; (11)256-pin Plastic Ball Grid Array package,27 x 27 x 2.76 mm; (12)Power dissipation (outputs open): 900 mW typical 1100 mW max; (13)Supply voltage: 3.0 to 3.6V; (14)Ambient temperature range: 0℃ to 70℃.
Features
ETRAX100LX features: (1)Powerful integrated SoC based on AXIS ETRAX 100LX; (2)Designed for running Linux 2.4/2.6, includes an MMU; (3)Low power consumption; (4)4MB Flash and 16MB SDRAM integrated; (5)10/100 Mbit Ethernet, including integrated transceiver ; (6)Several I/O options e.g. Ethernet, RS-232/485, USB, IDE, SCSI, Parallel, GPIO; (7)No license fees.

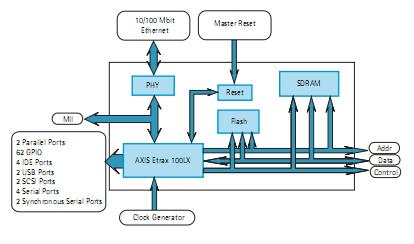

Diagrams
 |
